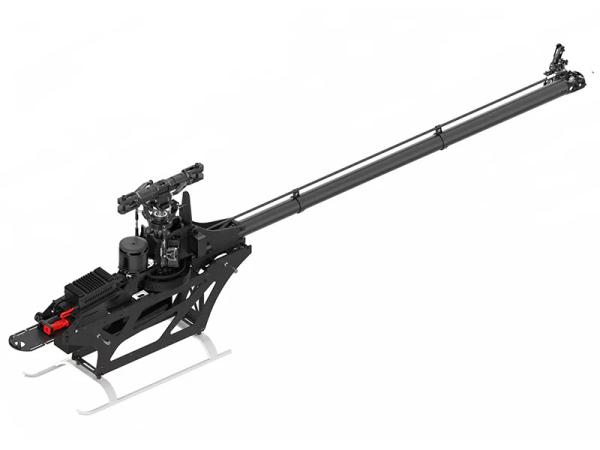

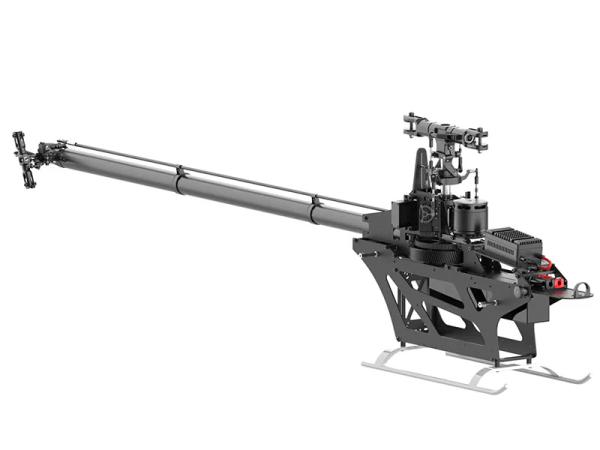

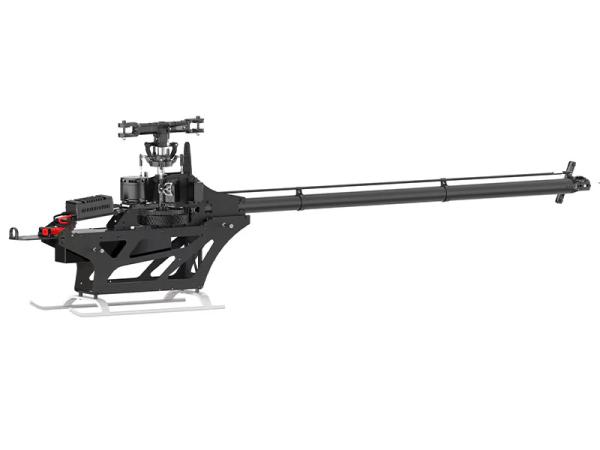

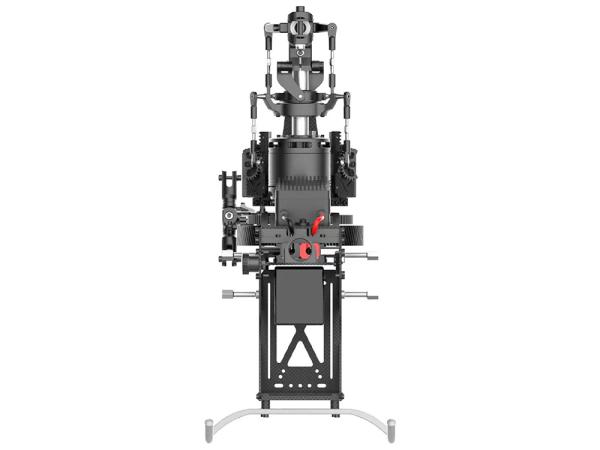

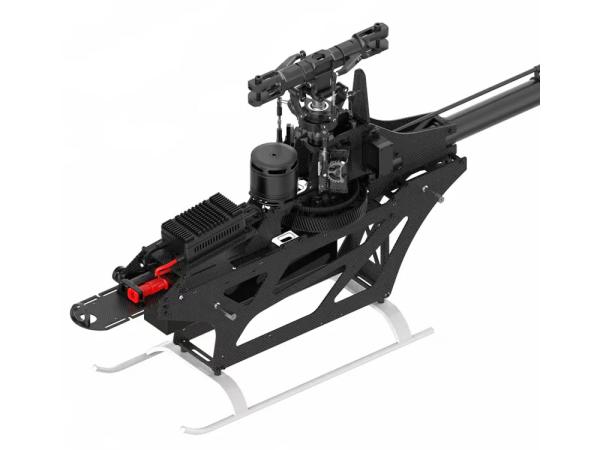

The Wraith E 760 V3 is XLPower’s flagship 760-class F3C helicopter. It blends proven design from the Specter 700 series with new optimisations to deliver high-precision flight, modular flexibility, and serious performance.
The Wraith E 760 V3 is aimed at advanced and competition pilots who demand:
Absolute precision in aerobatic and F3C routines
The flexibility to tune and upgrade control systems
A frame and drivetrain that can handle aggressive flying without frequent rebuilds
Customisable setup (battery location, gear ratio, tail dynamics)
KEY FEATURES
Large Blade Support
Supports up to 760 mm main blades and 115 mm tail blades, giving more rotor disc area for smoother control and better hover stability.
Linear Control System
Uses a linear control mechanism instead of classic servo arms. This reduces arc error in cyclic control, producing smoother, more predictable pitch and roll response.
120° Servo Layout Geometry
Cyclic servos are arranged in 120° geometry for optimal control movement across the collective range.
Specter-Derived Structure & Drivetrain
Inherits design principles and drivetrain options from the Specter 700 WC series. The integrated motor mount and dual-row angular contact bearings are built for durability and lower maintenance.
Swappable Battery Tray
Offers quick release and bottom-mount options, with two mounting positions to adjust centre of gravity (CG) easily.
Refined Tail System
The WC version’s tail offers improved tail locking and vibration control. Tail gear ratio is 5.0 for strong holding power even at low speeds.
TECHNICAL SPECIFICATIONS
Length w/o main blades: 1,362 mm
Overall height: 386 mm
Frame width: 217 mm
Frame weight: 2,060 g
Main shaft diameter: 15 mm
Feathering shaft diameter: 10 mm
Main gear: 106 T（110T Optional）
Pinion gear: 10 T（9T Optional）
Tail boom diameter: 32 mm
Tail ratio: 5.0
Maximum main blade length supported: 760 mm
Maximum tail blade length supported: 115 mm
Battery compartment size: 380 × 68 × 70 mm
Motor class (suggested): 4025 – 4035 (or equivalent for large 12S setups)
ESC rating (recommended): 130A – 180A
Servo spec (cyclic): Full-size digital high-speed servos
Servo spec (tail): Full-size digital high-speed servos
Drive system: Specter-derived WC drivetrain with support bearings

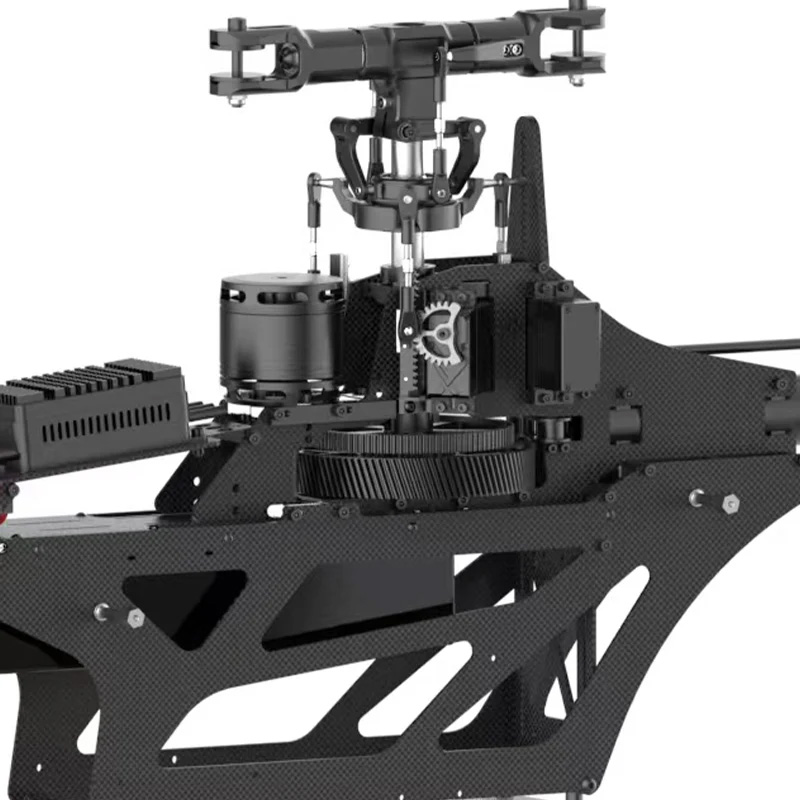

Linear SERVO DRIVE SYSTEM
The Wraith features a direct-drive linear servo layout that connects the servos to the swashplate through precision-cut gears. This eliminates control arc errors common in conventional linkage setups. The result is pure mechanical precision, faster cyclic response, and perfectly symmetrical control feel throughout the full pitch range.

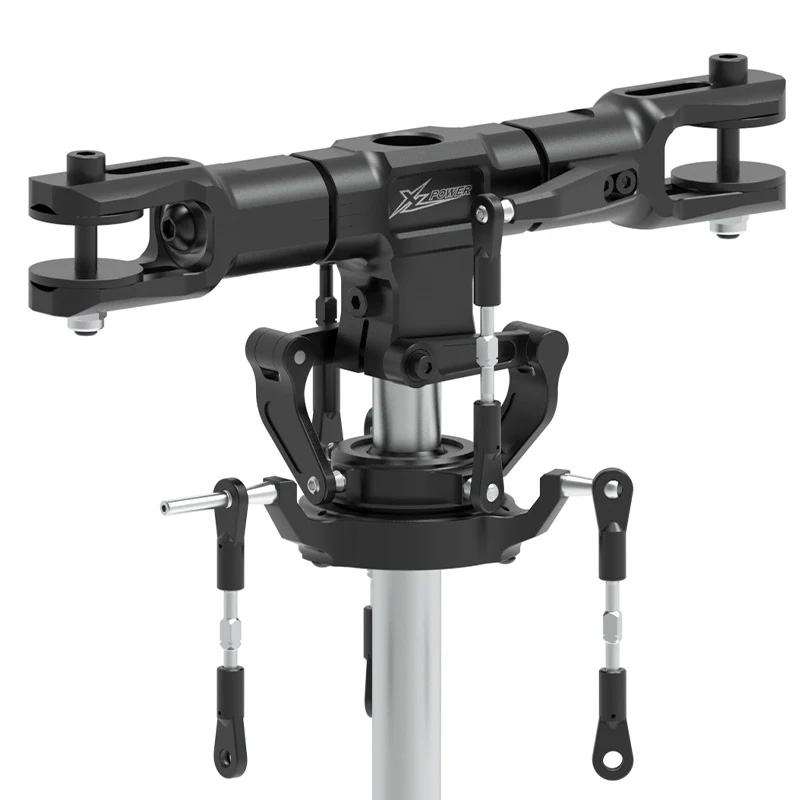

Rigid ROTOR HEAD ASSEMBLY
CNC-machined from high-grade 7075 aircraft aluminum for maximum stiffness and precision. The optimized geometry delivers linear collective response and zero slop, while the 1:1 control ratio ensures perfectly symmetrical movement in all directions with no mechanical error—making it the ideal choice for F3C precision flight.

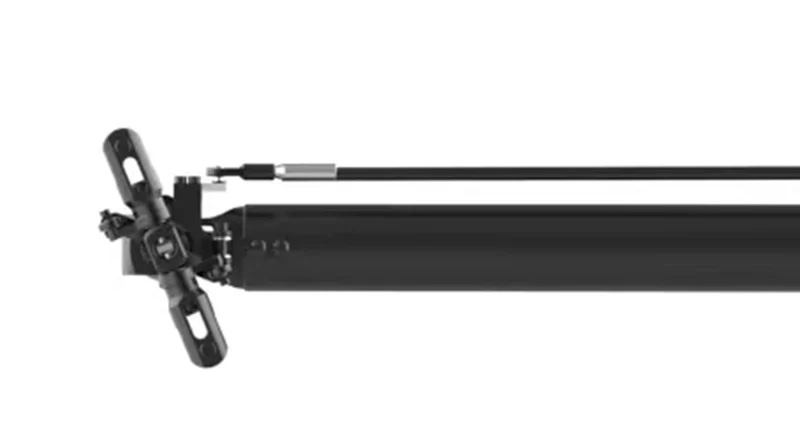

High-Efficiency TAIL SYSTEM
The tail rotor adopts a full-scale teetering design that maintains quiet operation and exceptional tail-hold performance at any rotor speed. A custom 7mm ultra-flexible belt provides improved autorotation capability and outstanding durability.
Content:
Variant without Canopy:

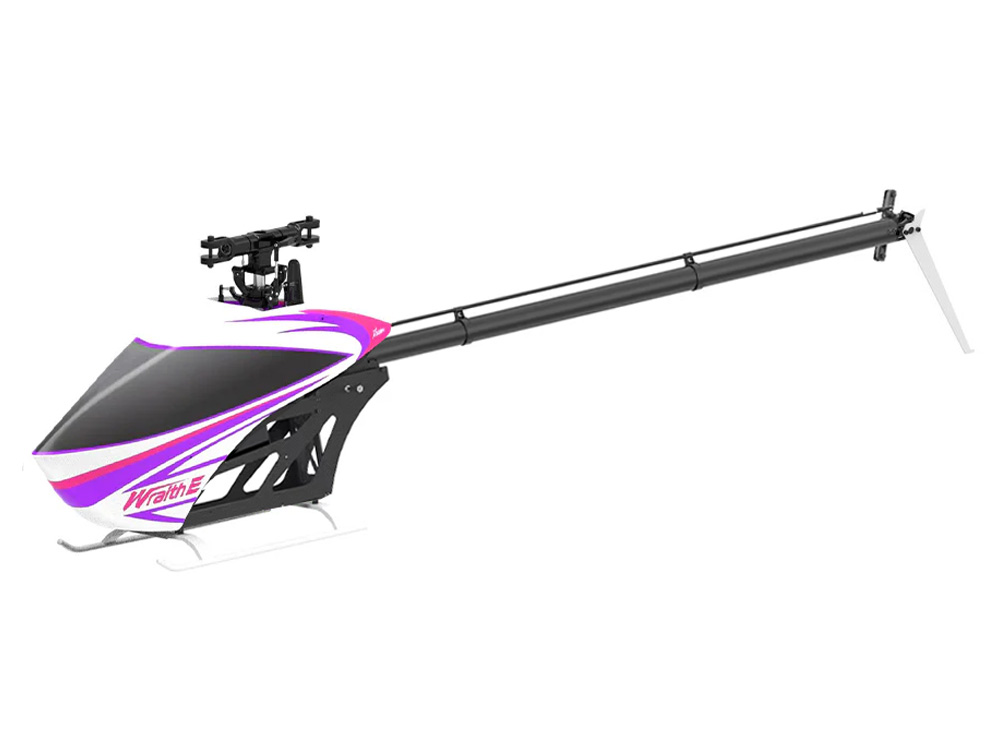

Variant with Canopy:
This model helicopter is not suitable for children under 14 years!
