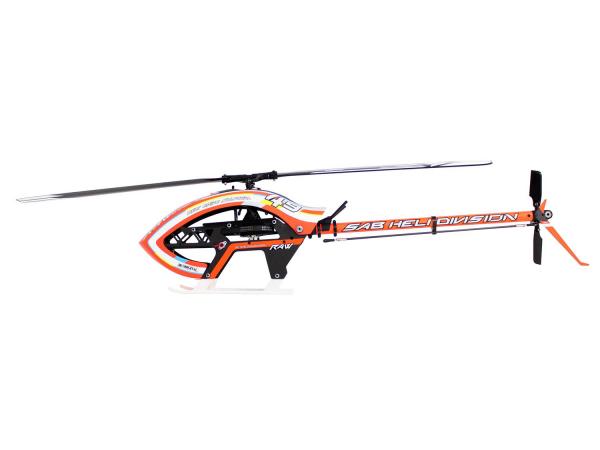

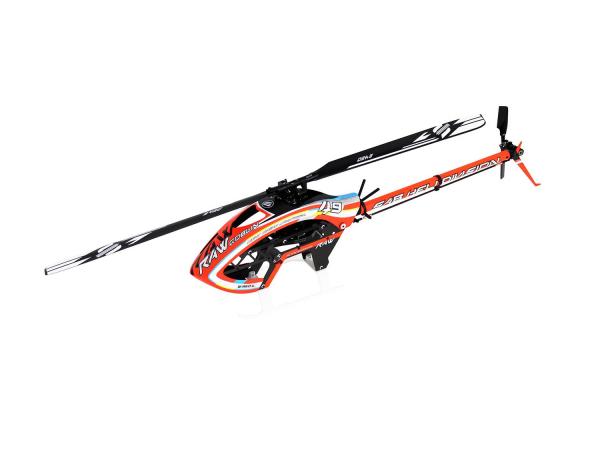

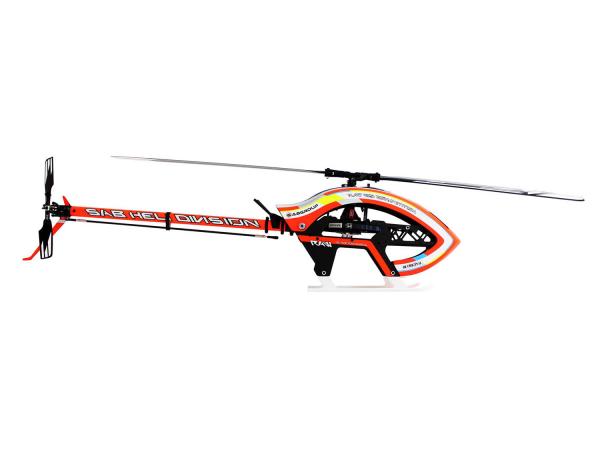

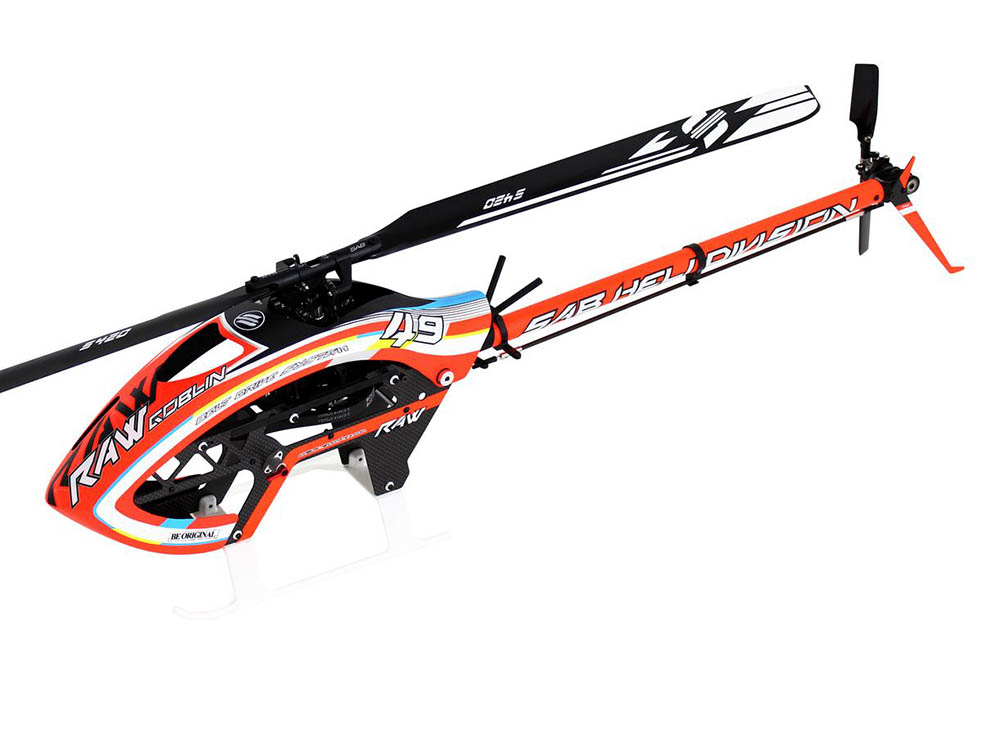

The brand new Raw 420 Competition is the latest development of SAB's 420 model. Instead of a direct drive, the Competition version has a single-stage transmission. This allows you to install engines at your own discretion. This means that the speed and power range can be adjusted at your own discretion.
The Raw 420 Competition can be operated with motor types from 2820 to 3220 and specific speeds from 800KV to 1000KV. A variety of motor pulleys allow you to adjust the system speed to suit your personal needs.

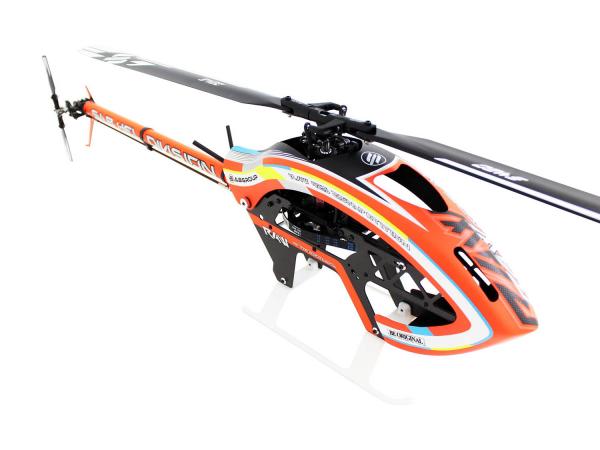

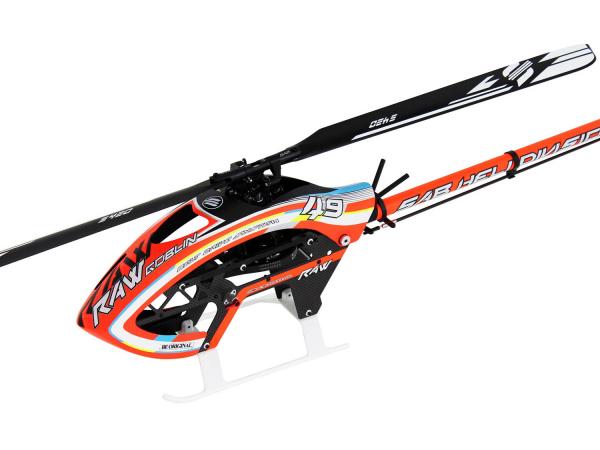

The RAW 420 Competition is lighter than its direct drive counterpart. It also has a new canopy, which does not have to be removed to change the battery.

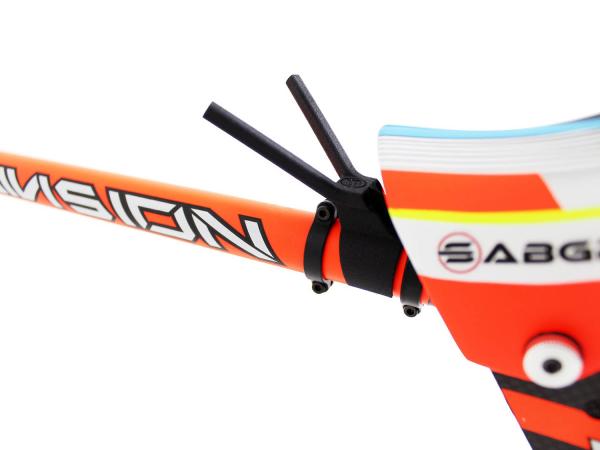

Setting up the RAW 420 Competition is very quick and easy. The model has a very small number of parts and a number of cool features such as a new and improved rear push bar that is very easy to assemble, an integrated flybarless system antenna mount and much more.
The RAW 420 Competition is designed to run on a 6s 2200 to 2700 mAh battery and comes with SAB main and rear blades.

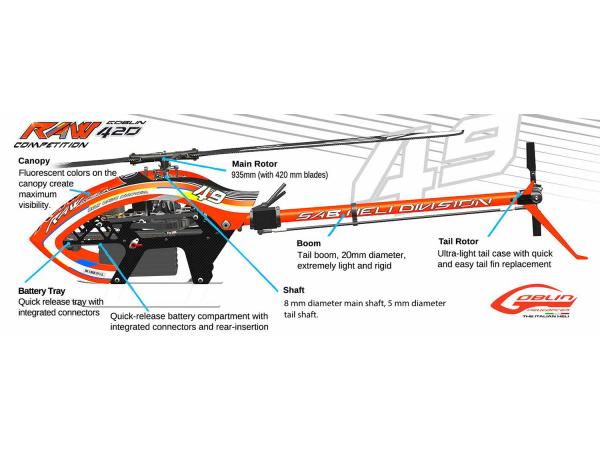

Specification:
• Main rotor diameter 935mm (with 420mm blades)
• Main blade length 380 to 420mm
• Tail rotor diameter 190mm (with 70mm tail blades)
• Tail blade length 60 to 70mm
• Micro size cyclic servos (23mm)
• Mini size tail servo (35mm)
• Maximum battery size: 140x40x50mm (max)
• Recommended battery: 6s 2200/2700 mAh
• Recommended motor: 3020 – 3215 – 3220
• Recommended KV motor: 900-1000 KV
• Recommended battery weight: 350-420 grams
• Recommended ESC: 60 (70-80A is required only for hard 3D flight with temperatures above 30°C)
• Tail rotor ratio 4:1
• 8mm main shaft
• 5mm tail shaft

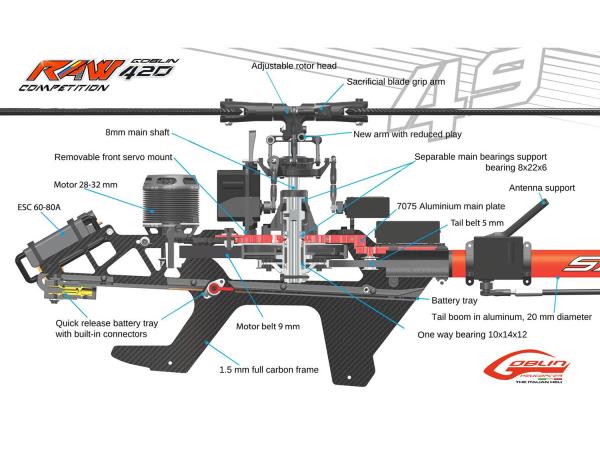

Raw 420 Competition main features:
• Quick release battery tray with integrated connectors
• Zytel HTN resin blade grip arms (sacrificial)
• It is not necessary to remove the canopy to replace the batteries.
• Main ratio 1:5/6
• Tail ratio 4:1
Electronics and accessories:
Recommended accessories (not included).
3x MICRO swashplate servos (23mm)
1x MINI tail servo (35mm)
1x 60-80A speed controller
Flight battery 6S 2200 - 2700mAh 40x54x135mm
Motor 2820 -3020 - 3215 - 3220 / 800-1000KV
This model helicopter is not suitable for children under 14 years!
