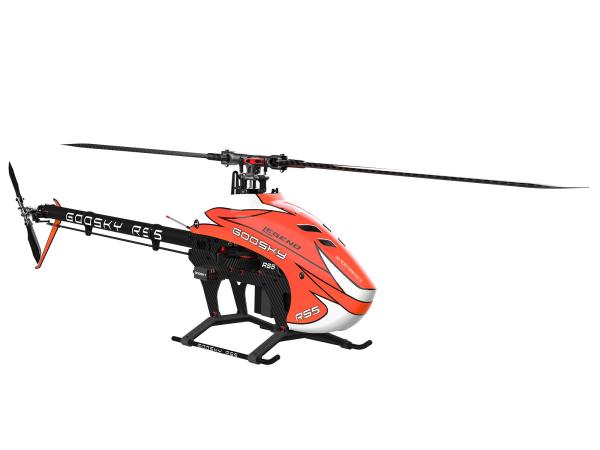

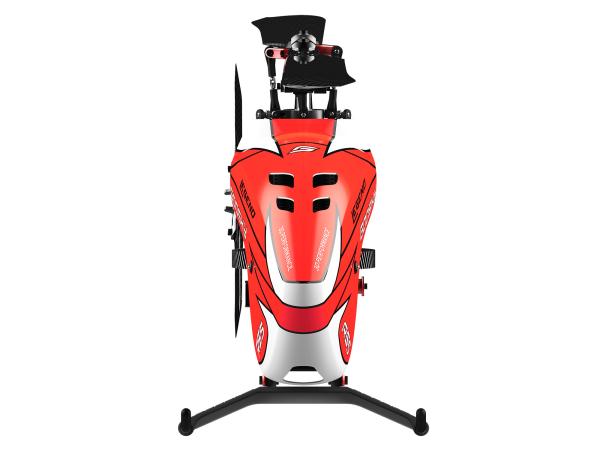

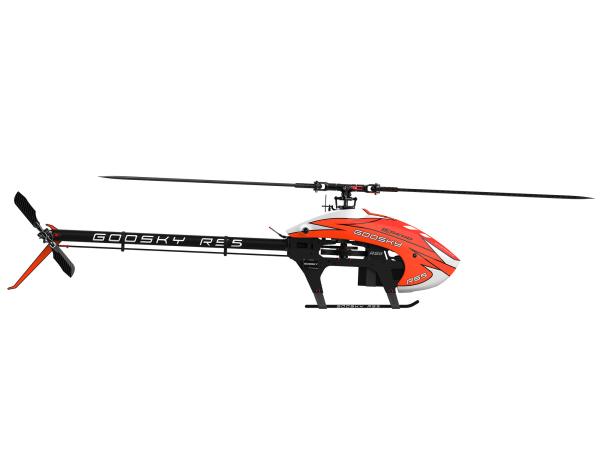

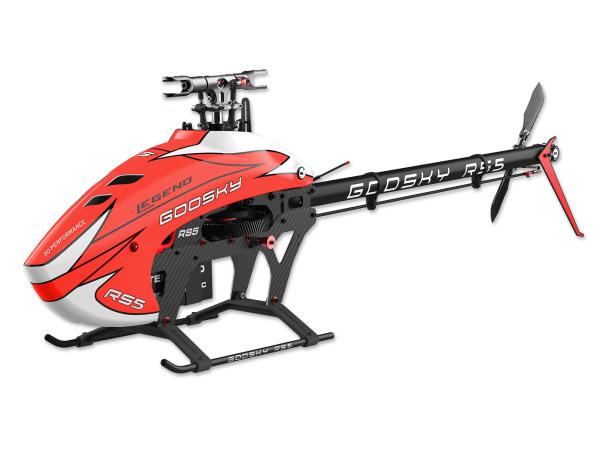

The RS5 helicopter is the latest addition to the Goosky Legend family, inheriting Goosky’s renowned excellence in 3D helicopter performance.
Technical data:
The core metal components are made from 7075 aviation grade aluminum alloy through high-precision milling processes.
The RS5 adopts a high precision, high strength, and low noise bearings for all rotating components.
The whole helicopter uses 12.9 high-strength alloy steel screws.
The oversized swashplate improves cyclic pitch flexibility while greatly enhancing bearing capacity.
The specially designed main rotor head features a newly optimized feathering shaft structure with built-in damping, providing precise control and stable flight performance.
The length of the main control pitch linkages is the same as the CCPM servo to swash linkages, all with the turnbuckle threads designed for convenient tuning.
Lightweight 12mm main shaft specially manufactured through a variety of special processes ensures high strength while retaining the necessary toughness.
The integrated 6mm tail shaft with hub is engineered to smooth the vibrations generated during high-speed tail rotations.
A precisely calibrated tail pitch control system with a specially designed lever arm enables more accurate control with less effort.

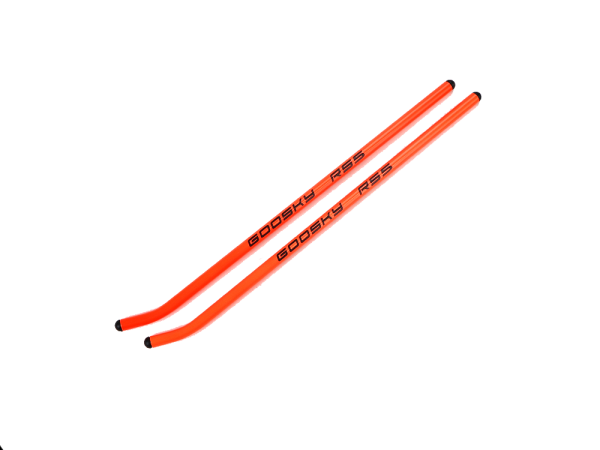

Lightweight and high-strength landing gear made from specialized materials allows for easy assembly and maintenance.
The design of the integrated main motor mount and bearing bracket and the one-piece main shaft design ensure precise alignment and high-strength performance.
The cage structure main frame design combined with thickened side panels provides the RS5 with an extremely rigid airframe across the entire structure.
The RS5 is compatible with both mini servos and standard servos, offering customization options to suit pilot preferences.
The tail servo is a standard size servo.
The tail push rod is secured with double-thread threaded connectors ensuring the elimination of play.
The RS5 canopy features a quick-release design, making battery replacement simple and convenient.

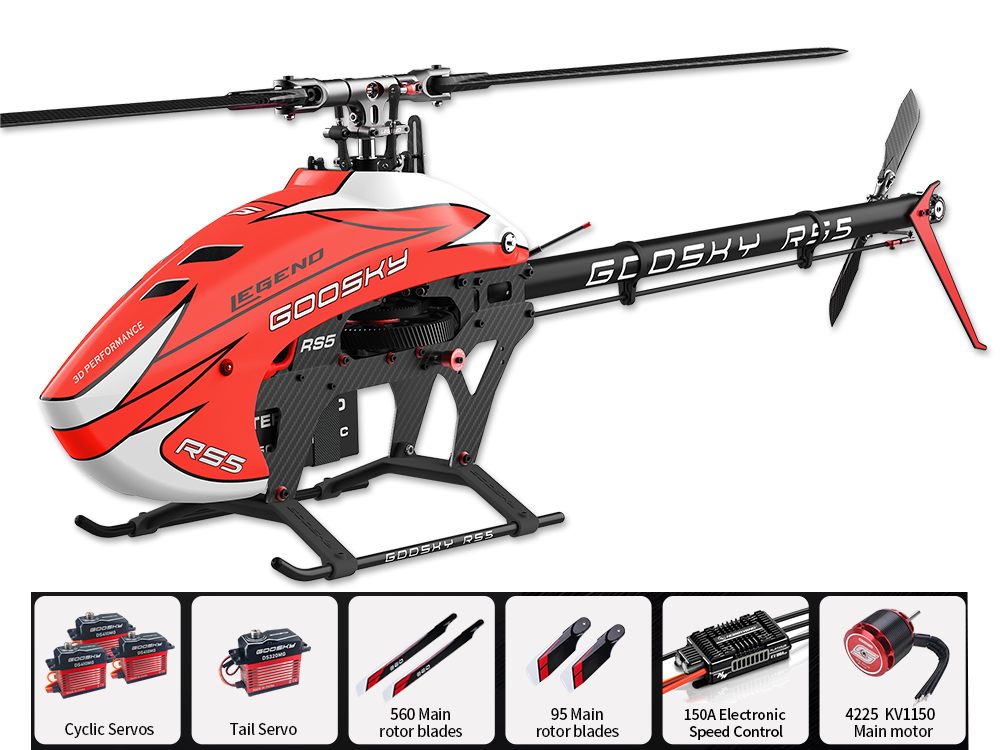

The newly designed streamlined canopy is even more stunning and elegant.Top components in the 6S Super Combo:

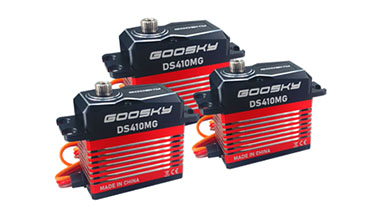

| 3x GOOSKY DS410MG - Powerful and fast brushless digital servos for the swashplate |
|---|
• Operating voltage: 6.0V - 8.4V |
| • Speed: 0,09sec/60° @ 7.4V / 0,075sec/60° @ 8.4V |
| • Torque: 40kg @ 7.4V / 43kg @ 8.4V |
| • Size: 54.25 x 20 x 38.5mm |
| • Weight: 84g |
| • Neutral pulse: 1520µs |
| • Working Frequency: 50-560HZ |

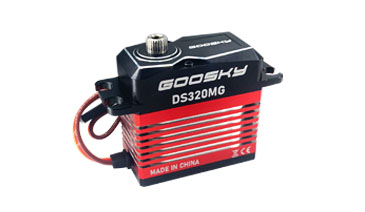

| 1x GOOSKY DS320MG - Powerful and fast brushless digital servos for the Tail |
|---|
• Operating voltage: 6.0V - 8.4V |
| • Speed: 0,054sec/60° @ 7.4V / 0,048sec/60° @ 8.4V |
| • Torque: 30kg @ 7.4V / 32kg @ 8.4V |
| • Size: 54.25 x 20 x 38.5mm |
| • Weight: 84g |
| • Neutral pulse: 760µs |
| • Working Frequency: 50-560HZ |

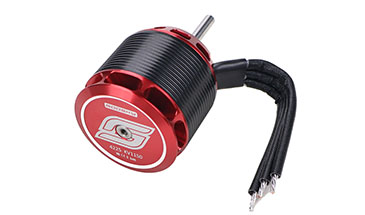

| GOOSKY Brushless Motor 4225 |
|---|
• for LiPo cell: 6S |
| • RPM per Volt: 1150KV |

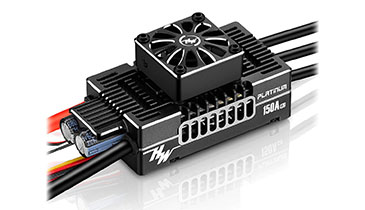

| Hobbywing Platinum PRO 150A V5.1 Regler |
|---|
• Current Cont./Peak: 150A/180A |
| • BEC Voltage: 5 - 12V @ 10A (Switch-Modus) |
| • BEC Current Cont./Peak: 10A / 30A |
| • Telemetry-function: Mikado VBar, Futaba S.Bus2, etc. |
| • Size: 83,2 x 37,1 x 22,5mm |
| • Weight: 150,4g |

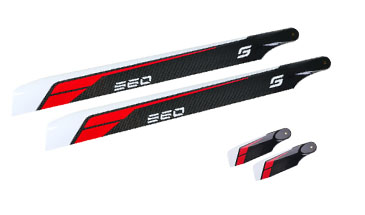

| GOOSKY Carbon Rotorblade |
|---|
• Main Rotorblade: 560mm |
| • Tail Rotorblade: 95mm |

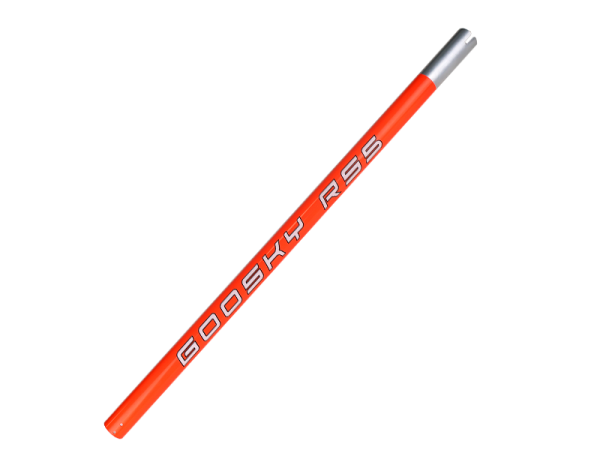

In contrast to conventional 550-class designs, the RS5 features a reinforced main shaft and tail shaft with diameters of 12 mm and 6 mm respectively. The one-piece tail shaft and hub, combined with a large-diameter tail boom (approx. 30 mm) and an oversized swashplate assembly, contribute to improved agility.
The main frame adopts a rigid cage structure with reinforced side panels, providing the RS5 with exceptional overall stiffness. In addition, the newly designed streamlined canopy enhances its visual appearance.
The RS5 is designed for mini swash servos; however, both mini and standard servos can be installed in the airframe without the need for additional replacement parts.
GOOSKY RS5 6S Super Combo Contents:
This model helicopter is not suitable for children under 14 years of age!
