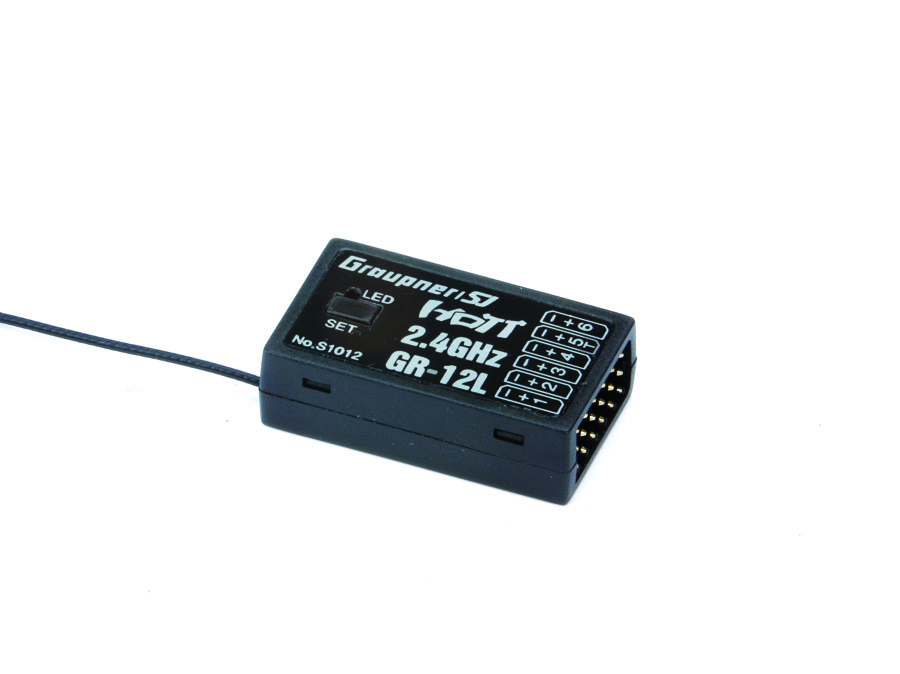

The GR-12L receiver can control up to 6 servos
The GR-12L provides real-time
bi-directional data transmission of critical system health datalike
temperatures, receiver voltage and signal strength using the Graupner
HoTT protocol providing you with telemetry information you need for a
safe and secure flight.
Our most affordable 2.4GHz full range receiver with built-in telemetry,
the Graupner GR-12L 6 Channel receiver is small sized and lightweight,
lending itself very well for small park flyers, lightweight hand launch
sailplanes, helicopters and multirotors. The ultra-low voltage
requirements of the GR-12L allows it to operate on a single-cell LiPo
making ideal for DLG gliders.
FEATURES
- Wide voltage ranges from 3.6V to 8.4V
- Low power consumption
- Fail Safe and Hold function
- Selectable frame rate of 10ms or 20ms for digital or analog servos
- Digital SUMD, SBUS signal output providing connectivity to other vendors flight controllers
- Front load servo connections for easier installation in small airframes
- Compact and lightweight
- Up to 75 channel hopping for extreme operating reliability and immunity to external interference
Specification:
Temperature range : -15 ... +70 °C
Aerial length: 1 x Draht 145 (Antenne 30) mm
All-up weight, approx.: 7 g
Frequency : 2400 ... 2483.5 MHz
Range approx. : 2000 m
Dimensions (LxWxH): 36 x 21 x 10 mm
Modulation: 2.4 GHz FHSS
Charging rate : 70 mA
Operating voltage : (2,5) 3,6 ... 8,4 V
