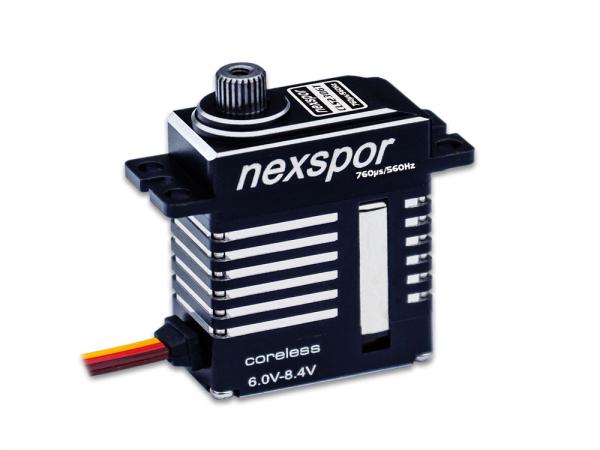

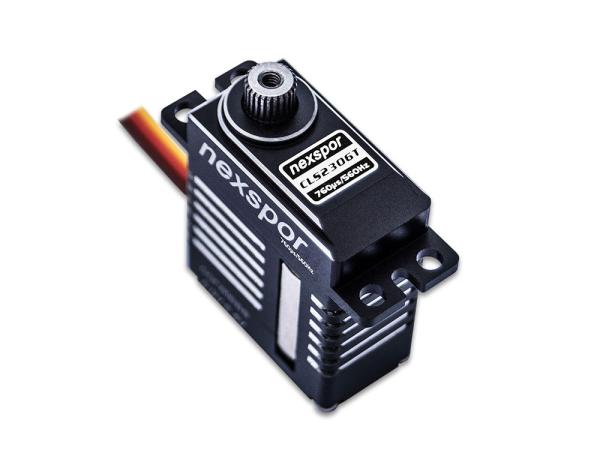

NEXSPOR CLS2306T HV Digital Servo (Tail) # CLS2306T

Product number: CLS2306T

CLS2306T Micro 23mm Tailservo 250 - 470 class helicopter.

Questions about product Sign in to watch list

In stock, available

Within DE: 2 Business Days **
Outside DE: 5 Business Days**

CLS2306T Micro 23mm Tailservo 250 - 470 class helicopter.

The servo has been tested and optimized to the limit in countless flights by our team for maximum performance and long life.

The tail servo CLS2306T is extremely fast and at the same time very powerful. The high speed and power of this small servo allow you to have the maximum tail performance of your helicopter.

Feature:
  • High quality coreless motor
  • High quality potentiometer
  • High precision metal gear
  • High resolution
  • Full CNC aluminium case
  • Dual ball bearings
  • Ideal for 250 - 470 class helicopter tail

Specifications:

Operating VoltageDC 6,0-8,4V
Speed at (6,0V)0,06 sec/60°
Speed at (7,4V)0,05 sec/60°
Speed at (8,4V)0,04 sec/60°
Torque at (6,0V)4,2 kg/cm
Torque at (7,4V)5,2 kg/cm
Torque at (8,4V)6,0 kg/cm
Dead Band0,002ms
Neutral pulse760µs
Working Frequency560Hz

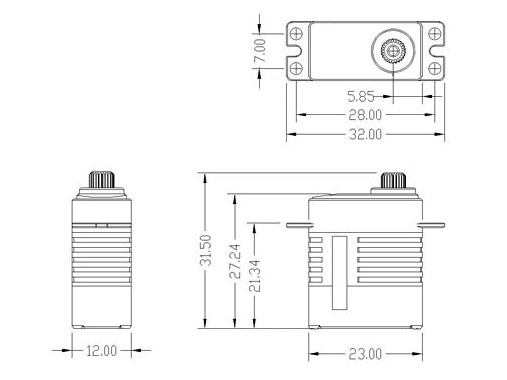

Dimensions (mm)23x12x27,5
Output toothing25T Ø 5,0mm
Weight20,3g
Connecting wireJR220mm



Ideal tail servo for: Align T-REX 250, 450, 470, OXY 2, OXY 3, OXY 4, Goblin Fireball/Comet, Protos 380, and many more....


Accessories:

1x Servo CLS2306T
4x Servo horn
1x Screw M2,3
2x Tapping screw for servo

Attributes
will fit in OXY3-SNB | OXY3-TNB | OXY3-TE | SG280 | SG284 | SG283 | SG289 | OXY2-SH |
Part number CLS2306T
Module Tail Servo
