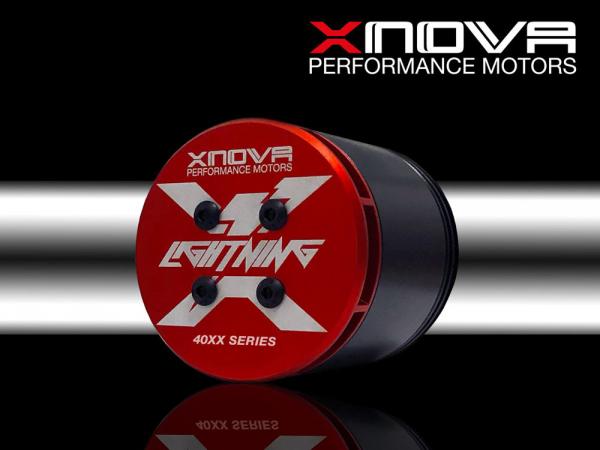

XNOVA Lightning 4025-1120KV shaft B # XN-LG-4025-1120-B

Product number: XN-LG-4025-1120-B

Extreme powerful motor for Goblin 570 / Kraken 580 with 6S LiPo

Questions about product Sign in to watch list

Product Reminder

Currently sold out

XNOVA Lightning 4025-1120KV shaft A # XN-LG-4025-1120-B

520-600 size helicopters for extremely hard 3d flying on 6S to 7S

We have spent hours of testing to improve the very well established 4025 series. The result is an even better overall performing motor with extreme low cogging torque and increased efficiency. This all will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova V3 lightning series is the highest level of motor performance money can buy nowadays.

Xnova brushless high performance outrunner motor for 520-600 size helicopters for extremely hard 3d flying on 6s. Extreme powerful motor for Goblin 570 / Kraken 580, Synergy E5 - E6, T-rex 600 or Logo 500 up to Logo 600.

1. Improved higher efficiency with thinner stator lamination, resulting in lower temperature.
2. Optimized and unique design, hand wound to perfection
3. Smooth running, low cogging torque.
4. New type of higher degree magnets.
5. All other features same as performance series.

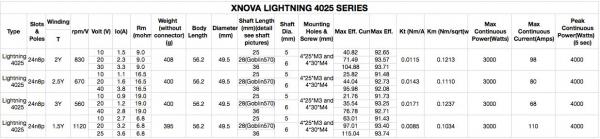

Technische Daten:

Schema: 24N8P
Turns/Verschaltung: 1,5 Y
KV: 1120
RI: 6,8 mOhm
Gewicht (inkl. Kabel, ohne Stecker): ca. 395 g
Länge (ohne Welle): 56,2 mm
Durchmesser: 49,5 mm

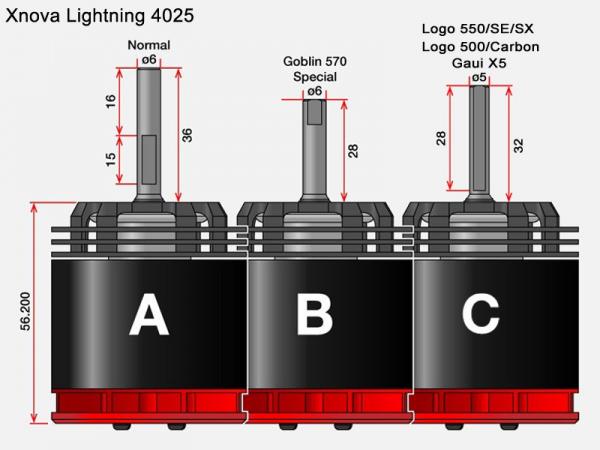

Verfügbare Wellenlängen: 28 mm (Goblin 570)
Verfügbare Wellendurchmesser: 6 mm
Bohrung / Lochkreis (Montage): 4 x 25 und 4 x 30 mm
Befestigungsschrauben: M3 und M4
Maximale Dauerleistung: 3000 Watt
Maximale Spitzenleistung (5 Sek.): 4000 Watt
Maximal-Strom (Dauer): 110 A
Maximal-Strom (Spitze): 150 A

Attributes
Part number XN-LG-4025-1120-B
will fit in SG573 | SG575 | SG580 | SG586 | SG582 | SG583 | SG585 | SO-8856-1 | SO-8864-1 |
Module Motor
